Quick Details

  • Condition: New
  • Type: Wheel Tractor
  • By wheel: 4WD
  • Usage: Farm Tractor
  • Drive Type: Gear Drive
  • Power(W): 66.5kw
  • Certificate: Other
  • Brand Name: YTO/DFH
  • Model Number: YTO-X904
  • Place of Origin: Henan, China (Mainland)
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Color: original red, also others you want
  • type: YTO wheel tractor
  • clutch: double action
  • steering: hydraulic steering
  • Differential lock: yes
  • shift Gear-box: 12/4
  • optional 1: cabin
  • optional 2: air-conditioner
  • optional 3: more balance weight
  • optional 4: paddy tire

Packaging & Delivery

Packaging Details nude for main machine, plywood for spare parts
2sets of the tractor YTO 70-90hp could be packed into one 40HQ.
Delivery Time Shipped in 25 days after payment

 Original YTO-X904 henan 90hp wheel tractor with good price

Company Information
Thanks for your attention for our products, we, Luoyang Chunqiu IMP & EXP Trading Co.,Ltd. Mainly deal with engineering machine and agriculture machines ( including road roller, bulldozer, loader, excavator, tractor, etc) and their parts.

Our tractor with brand YTO, from 18-180hp, wheel and crawler types, mainly adopt YTO DFH engine, Air conditioner, cabinframe against turning, visor awning, etc. available .

OVERALL IMPRESSION:

1.machine designated area for wheel tractor

2.parts warehouse for wheel tractor

TRACTORS DETAILS:

1.wheel type & crawler type

2.Transport and packing photo

Detail information for YTO 70-90hp 4wd wheeled tractor

Photos

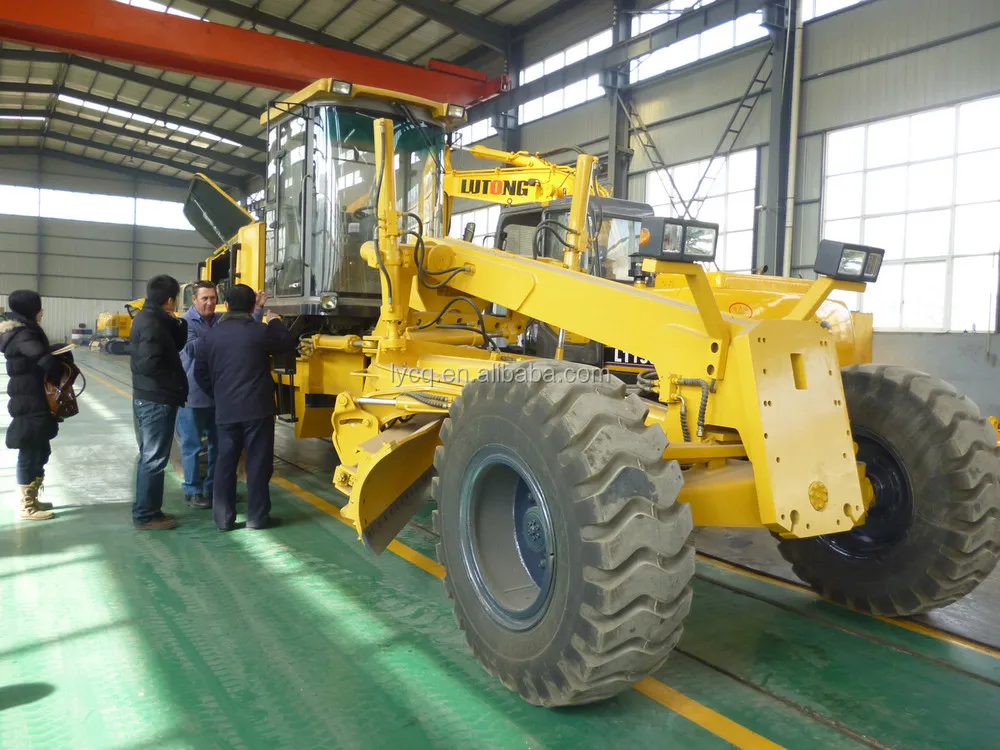

customer visiting

Features
The diesel engine, which is manufactured using advanced British technology, delivers large torque, high fuel efficiency and low emission. PERKINS engine is also optional.
The transmission system is made on the basis of Italian technology. The top speed can be more than 35km/h.
The full hydraulic steering system is utilized for easy operation.
High safety is ensured due to the use of the wet disc brake.
Optional new cab is not only elegant but also can be equipped with an air conditioning system so as to offer the driver a high level of comfort.
In addition to built-in master cylinder, two auxiliary cylinders can also be used, resulting in increased lift force (30kN).
Our wheel loader adopts double action clutch. German LUK clutch is available for your choice.

Specifications

ModelYTO-X704YTO-X754YTO-X804YTO-X854YTO-X904
Tractor
Type4×4
Overall dimensions (LxWxH)(mm)4250×2145×26504250×2145×26504350×2170×27404350×2170×27404350×2300×2765
Wheelbase(mm)2314
Min. ground clearance(mm)370370430430440
Min. operating mass(with safety stand)(Kg)35403540367536753920
Tyre spec., front /rear11.2-24/16.9-3011.2-24/16.9-3011.2-28/13.6-3811.2-28/13.6-3813.6-24/16.9-34
Wheel tread, front/rear1569~2005/1569~2005/1630~1960/1630~1960/1562~2000/
1500~21001500~21001500~21001500~21001520~2120
SteeringFull hydraulic
BrakeOil immersed, disk type
Diesel engine
ModelLR4A3-23LR4B5-23LR4B5-23LR4M5-23LR4M5-23
TypeFour cylinder, vertical, water cooled, four stroke, direct injection combustion
Displacement (L)4.334.954.955.135.13
Rated power/speed(Kw)/(r/min)51.5/240055/240058.8/230062.5/240066.5/2300
Max. torque (N.m)/speed (r/min)237/1500-1700254/1500-1700270/1500-1700302/1600-1800325/1600-1800
Bore x stroke (mm)105x125105x125108x125108x135110x135
Transmission
Gear shift, forward/backward12/4
Speed range (Km/h), forward/backward1.61~26.57/1.61~26.57/1.63~26.82/1.71~28.14/1.65~27.17/
4.19~12.594.19~12.594.230~12.694.44~13.314.28 ~12.85
PTO power (Kw)4447505355
PTO rotation speed (r/min)540/720 or 540/1000
Clutch11-inch, dry, double action
Implement
Three-point linkage categoryThree-point linkage category Ⅱ
Tilling depth control modeCombined draft, position control and floating control
Lifting force(KN)1617
Options
OECD anti-turnover barOECD certified anti-turnover bar or anti-turnover bar with awning
Transmission with shuttle-type gear12+12
Transmission with creeper gear24+8
Hydraulic output2 or 3 group
