Quick Details

  • Condition: New
  • Brand Name: Sinomach
  • Model Number: 966
  • Place of Origin: Jiangsu, China (Mainland)
  • Type: Front Loader
  • Moving Type: Wheel Loader
  • Dimension(Long * Breadth * High): 8580x3048x3532mm
  • Rated Load: 6000kg
  • Certification: ISO certificate
  • Warranty: one year
  • After-sales Service Provided: Overseas third-party support available
  • color: yellow
  • Shangchai engine: SC11CB240
  • Engine rated power: 175kw
  • Rated load: 6000kg
  • Bucket capacity: 3.5m3
  • Bucket characteristic: Bucket automatic leveling ability
  • Boom characteristic: Boom position limitation
  • Cabin: with air conditioner
  • Drive axle: Meritor drive axle
  • Gearbox: ZF-4WG200

Packaging & Delivery

Packaging Details 1.Nude packing for the whole machine; polished with wax on the surface of the machine
2.Non fumigation wooden box for the spare parts
Delivery Time Shipped in 25 days after payment

  Sinomach good quality 6 tons 966 wheel loader for sale

Parts for loader
These parts will be assembled for wheel loader



Packaging & Shipping



1.Nude packing for the whole machine; polished with wax on the surface of the machine
2.Non fumigation wooden box for the spare parts

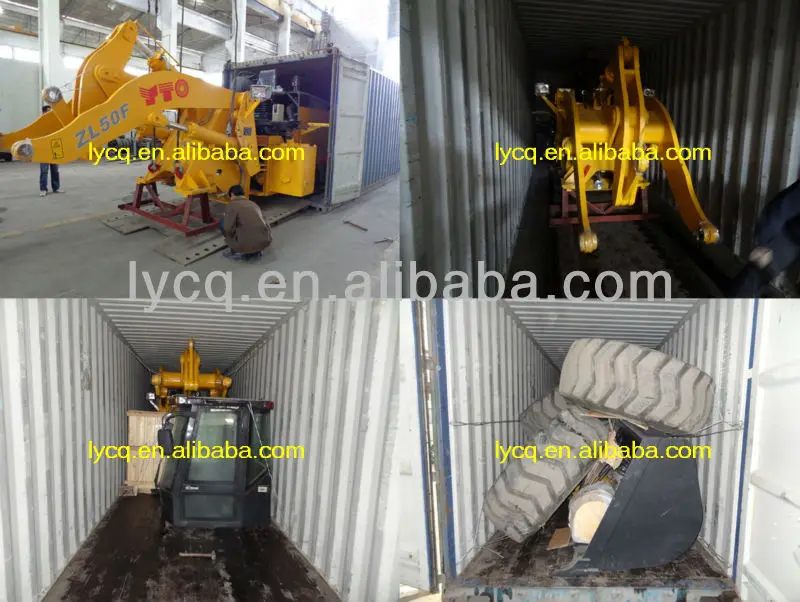

Loading pictures for wheel loader

Product Description



1.Equipped with ShangChai engine  SC11CB240.1G2B1 174.5kw



2.KD switch allows better efficiency & easy operation



3.Famous MERITOR dry type axle



4.Reliable ZF transmission case and torque converter   4WG200 gearbox



5.Bucket automatic leveling ability & boom position limitation



6.Combined seal cylinder obtains high seal performance and more reliability



7.Spacious cabin with air conditioner.



Main Parameters

  966 wheeel loader main technological parameters:



Model



966

Overall Dimension





Length(with bucket on ground)

mm

8580

Width(to outside of wheels)

mm

2897

Bucket width

mm

3048

Height(To the top of the cab)

mm

3532

Wheel base

mm

3300

Tread

mm

2300

Min. ground clearance

mm

403

Main Technical Specification





Rated load

Kg

6000

Operating weight

Kg

19100

Rated bucket capacity

m3

3.5

Max. breakout force

KN

190

Max. Driving force



180

Max. dump clearance

mm

3393

Dump reach

mm

1365

Dump angle at any position

°

≥45

Digging depth(with bucket bottom horizontal)

mm

212

Min. turning radius





(1) Outside of bucket

mm

6970

(2) Outside of front wheel

mm

6258

Pivot angle frame

°

38+1

Oscillating angle of rear axle

°

±12

Lifting time of bucket

s

5.8

Lowering time of bucket

s

3.2

Dumping time

s

1.5

Traveling speed





(1)1st gear (Forward & reverse)

Km/h

6.5

(2)2nd gear (Forward & reverse)

Km/h

11.8

(3)3rd gear (Forward & reverse)

Km/h

23.5

(4)4th gear (Forward)

Km/h

37.2

Diesel engine





Model



SC11CB240.1G2B1

Type



Direct injection.Turbocharged,Water cooling

Rated output

KW

174.5

Inter-bore of cylinder/stroke

mm

121/152

Total exhaust of cylinder

L

10.5

Model of start motor



4N3181

Power of start motor

KW

7.5

Voltage of starting motor

V

24

Rated speed

r/min

2200

Max. Torque

N.m/rpm

912/1400

Starting type



Electric

Min. specific fuel consumption

g/Kw.h

238

Engine specific oil consumption

g/Kw.h

0.95-1.77

Net weight

Kg

960

Transmission System





Torque Converter





Type



3-element.single stage

Torque ratio



2.55

Max. Dia. of flow path

mm

340

Cooling type



Pressure oil circulating

Gear Box





Model



ZF4WG200

Type



Power shift,spur gear constant-mesh

Gear shift position



4 Forward and 3 reverse gears

Axle and Tire





Type of main reducer



spiral bevel gear, single stage

Gear ratio of main reducer



4.875

Type of final reducer



Single stage planetary

Gear of ratio of final reducer



4.94

Total ratios



24.0825

Size of tire



23.5-25-20PR L-3

Working Device Hydraulic System





Model of oil pump



JHP2080-Gj0020-XF

System pressure

MPa

20

Model of distribution valve



DXS-00

Model of pilot valve



D32

(d*l)Dimension of lifting cylinder

mm

160*90*874

(D*l)Dimension of tilting cylinder

mm

210*110*575

Steering System





Type



Middle articulated frame. Full-hydraulic Steering

Model of steering pump



JHP2080S

System pressure

MPa

16

Dimension of steering cylinder

mm

100*50*425

Model of redirector



BZZ3-100

Brake System





Type of traveling brake



Caplier disc brake,Dual pipelines,Air over oil activate 4 wheel brake

Air pressure

kgf/cm2

7-8

Type of emergency brake



Automatic cutting-off air brake

Type of parking brake



Drum brake,Manual control cutting-off air brake

Oil Capacity





Fuel(diesel)

L

350

Engine lubricating oil

L

28

Brake System

L

2 x2

Oil for converter and gear box

L

45

Oil for hydraulic system

L

250

Oil for driving axles(F/R)

L

30+24





Company Information

       Our factory was built in 1961. In 1995 year, our factory established joint venture with Hyundai and Komastu separately. In 2006 year , our factory obtained GOST certificate for Russian Market. In 2008 year , our factory obtained CE certificate.



Our Services

 1. For the wheel loader, the delivery time is within 35 days from the date receiving the deposit

 2 .If you order large quantities (more than 10 units), we can send one or two persons to train your operators the operatiion and maintenance.



FAQ

 1. Troubles of transmission system

Failure symptoms

Cause

Remedies

Gear pressure low

1. A gear pressure is low

a. the seal ring of the gear was damaged.

b. the seal ring of the pipe was damaged.

c. the pipe of the gear was have leak .

a. Replace the seal ring.

b. Replace the seal ring

c. Check and repair the leakage.

2.Each gear pressure is low

a. Adjust pressure valve was failure.

b. Oil pump damaged.

c. Main oil pipe leakage.

d. Filter of oil tank blocked.

e. Oil level too low.

a. Repair the adjust pressure valve.

b. Repair or Replace oil pump.

c. Check the main oil pipe.

d. Clean or Replace.

e. Add oil.



2.  Troubles of braking system

Failure symptoms

Cause

Remedies

Insufficient foot brake force

1. Gas exist in the brake circuit.

2. Oil leakage in braking system.

3. Gas pressure is low.

4. The seal of the brake strengthener wore out;

5. Brake plate was wet by the oil from the hub.

1. Release the gas.

2. Replace the seal.

3. Check the seal. of the circuit.

4. Replace the seal.

5. Check or Replace the seal of the hub.

Brake fail to release normally

1. Brake valve was failure.

2. The brake strengthener imperfect movement.

3. The upper piston fail to return.

1. Check the brake valve.

2. Check the strengthener.

3. Check and Replace the rectangle ring.



Other models

 We can supply other models of wheel loader
